Products
HOME / Products
-

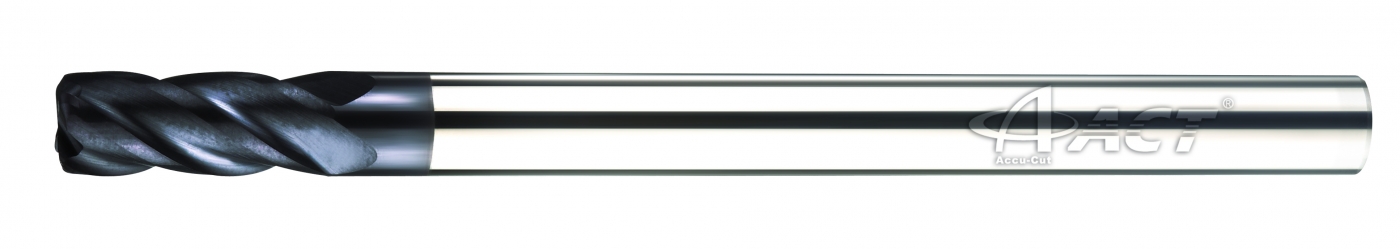

Item No. Flute (T) Diameter (D) Radius (R) Flute Length (H) Overall Length (L) Shank Diameter (d) A4NBL-R005-L075-D4 4 4 0.5 16 75 4 A4NBL-R005-L075-D4d6 4 4 0.5 16 75 6 A4NBL-R005-L060-D6 4 6 0.5 24 60 6 A4NBL-R005-L075-D6 4 6 0.5 24 75 6 A4NBL-R010-L075-D6 4 6 1 24 75 6 A4NBL-R005-L100-D6 4 6 0.5 24 100 6 A4NBL-R010-L100-D6 4 6 1 24 100 6 A4NBL-R005-L075-D8 4 8 0.5 32 75 8 A4NBL-R010-L075-D8 4 8 1 32 75 8 A4NBL-R005-L100-D8 4 8 0.5 32 100 8 A4NBL-R010-L100-D8 4 8 1 32 100 8 A4NBL-R005-L150-D8 4 8 0.5 32 150 8 Item No. Flute (T) Diameter (D) Radius (R) Flute Length (H) Overall Length (L) Shank Diameter (d) A4NBL-R005-L100-D10 4 10 0.5 40 100 10 A4NBL-R010-L100-D10 4 10 1 40 100 10 A4NBL-R005-L150-D10 4 10 0.5 40 150 10 A4NBL-R010-L150-D10 4 10 1 40 150 10 A4NBL-R005-L100-D12 4 12 0.5 48 100 12 A4NBL-R010-L100-D12 4 12 1 48 100 12 A4NBL-R005-L150-D12 4 12 0.5 48 150 12 A4NBL-R010-L150-D12 4 12 1 48 150 12 A4NBL-R010-L150-D16 4 16 1 50 150 16 -
