Custom Made Carbide Tap
We accept custom made carbide tap for several types,
- For Extra Longer Working Length
- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available
- For Special Application, such as Inconel, Stainless Steel or Hardened Material
- Interrupt thread or double thread are also available
- Welden, HSS tap for large size
- We provide you fully technical support and total solution on threading working pieces.
Fine More HSS-Co Tap (PF) Pipe Parallel Thread......

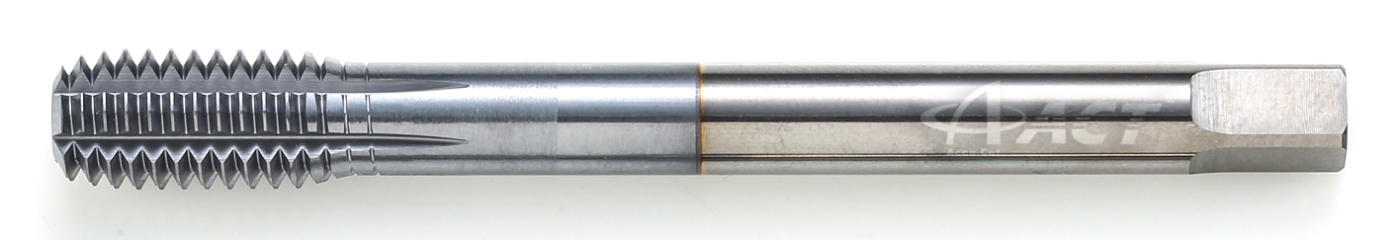

（RFH）Hss-Co Taps-Roll Form(Fluteless)-Pipe Parallel Thread(JIS Shank)-NPSM
-
Fine More HSS-Co Tap (PF) Pipe Parallel Thread......
（RFH）Hss-Co Taps-Roll Form(Fluteless)-Pipe Parallel Thread(JIS Shank)-NPSM
Pipe Parallel Thread Specification Square Shank Chamfer Length Flute Length Overall Length Shank Diameter Width Length G(PF)1/16-28 10P 60 8 6 9 2P G(PF)1/8-28 10P 60 8 6 9 2P G(PF)1/4-19 10P 75 11 9 12 2P G(PF)3/8-19 10P 75 14 11 14 2P G(PF)1/2-14 10P 80 18 14 17 2P G(PF)3/4-14 10P 85 23 17 20 2P G(PF)1''-11 10P 95 26 21 24 2P -
