(RFH)Hss-Co Taps-Roll Form(Fluteless)-Pipe Taper Thread(JIS Shank)-NPT

商品編號:RFH-NPT
  •



    Custom Made Carbide Tap

    We accept custom made carbide tap for several types,

    - For Extra Longer Working Length

    - Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available

    - For Special Application, such as Inconel, Stainless Steel or Hardened Material

    - Interrupt thread or double thread are also available

    - Welden, HSS tap for large size

                                                        - We provide you fully technical support and total solution on threading working pieces.

            Fine More HSS-Co Tap (PT) Pipe Taper Thread......


    (RFH)Hss-Co Taps-Roll Form(Fluteless)-Pipe Taper Thread(JIS Shank)-Rc(PT)




                                                                                                                                                     Spiral Flute(PT)





  • Fine More HSS-Co Tap (PT) Pipe Taper Thread......
    (RFH)Hss-Co Taps-Roll Form(Fluteless)-Pipe Taper Thread(JIS Shank)-Rc(PT)

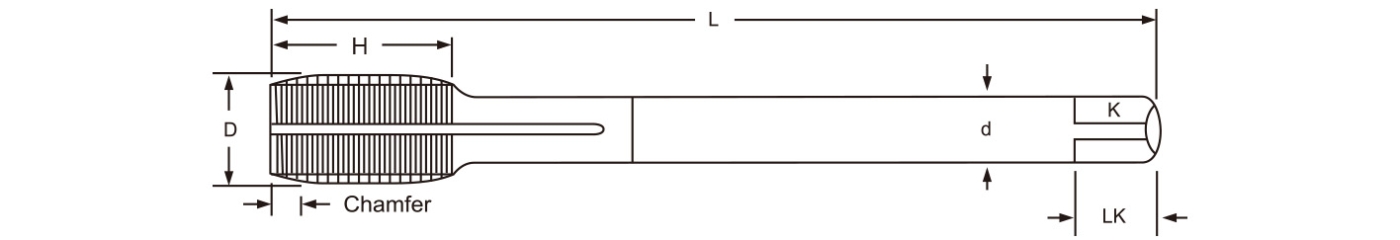

    Pipe Taper Thread  Specification Square Shank Chamfer Length
    Flute Length Overall Length  Shank Diameter Width  Length
    NPT1/8-27 16P 60 8 6 9 2P
    NPT1/4-18 23P 75 11 9 12 2P
    NPT3/8-18 23P 75 14 11 14 2P
    NPT1/2-14 23P 80 18 14 17 2P
    NPT3/4-14 25P 85 23 17 20 2P
    NPT1"-11.5 30P 95 26 21 24 2P
