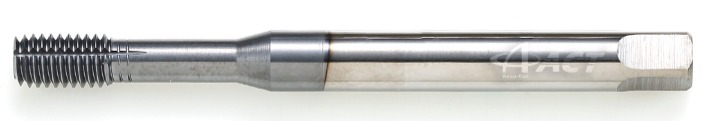

Custom Made Carbide Tap
We accept custom made carbide tap for several types,
- For Extra Longer Working Length
- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available
- For Special Application, such as Inconel, Stainless Steel or Hardened Material
- Interrupt thread or double thread are also available
- Welden, HSS tap for large size
- We provide you fully technical support and total solution on threading working pieces.
-
Fine More HSS-Co Tap (UN) Unified Thread......
(RFH)Hss-Co Taps-Roll Form(Fluteless)-Unified Thread(JIS Shank)-UN
(RFH)Hss-Co Taps-Roll Form(Fluteless)-Unified Fine Thread(JIS Shank)-UNF
(RFH)Hss-Co Taps-Roll Form(Fluteless)-Unified Extreme Fine Thread(JIS Shank)-UNEF
Unified Coarse Thread Specification Square Shank Class Chamfer Length Flute Length Overall Length Shank Diameter Width Length 5/16-18UNC 10P 70 6.1 5 8 2B 2P 3/8-16UNC 10P 75 7 5.5 8 2B 2P 7/16-14UNC 10P 80 8 6 9 2B 2P 1/2-13UNC 10P 85 9 7 10 2B 2P 9/16-12UNC 10P 90 10.5 8 11 2B 2P 5/8-11UNC 10P 95 12 9 12 2B 2P 3/4-10UNC 10P 105 14 11 14 2B 2P 7/8-9UNC 10P 115 17 13 16 2B 2P 1-8UNC 10P 125 20 15 18 2B 2P 1 1/8-7UNC 10P 135 22 17 20 2B 2P 1 1/4-7UNC 10P 145 24 19 22 2B 2P -
