Products
HOME / Products
-
Custom Made Carbide Tap
We accept custom made carbide tap for several types,
- For Extra Longer Working Length
- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available
- For Special Application, such as Inconel, Stainless Steel or Hardened Material
- Interrupt thread or double thread are also available
- Welden, HSS tap for large size
- We provide you fully technical support and total solution on threading working pieces.
Fine More (PF) Pipe Parallel Thread......

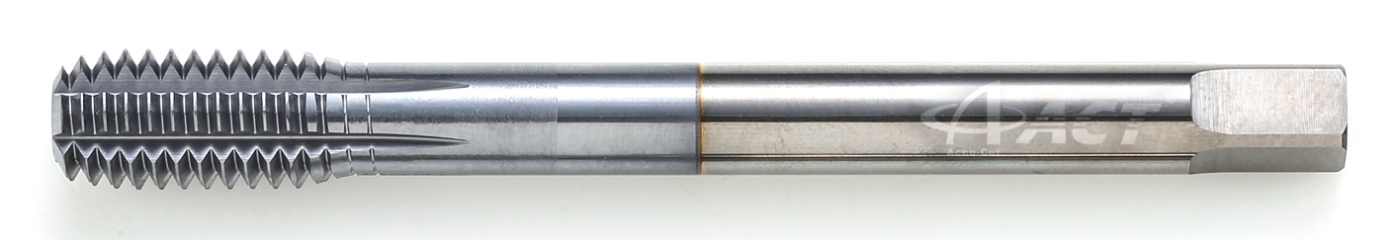

（RFS）Roll Form Solid Carbide Tap-Pipe Parallel Thread(JIS Shank)-G(PF)
（RFS）Roll Form Solid Carbide Tap-Pipe Parallel Thread(JIS Shank)-NPSM -
Fine More (PF) Pipe Parallel Thread......
（RFS）Roll Form Solid Carbide Tap-Pipe Parallel Thread(JIS Shank)-G(PF)
（RFS）Roll Form Solid Carbide Tap-Pipe Parallel Thread(JIS Shank)-NPSM

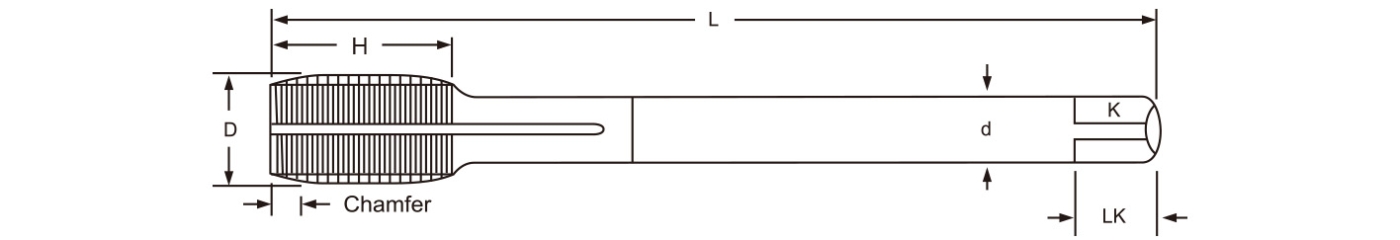

Pipe Parallel Thread Specification Square Shank Class Chamfer Length Flute Length Overall Length Shank Diameter Width Length Rp(PS)1/16-28 9 60 8 6 9 ISO 2P Rp(PS)1/16-28 9 60 8 6 9 ISO 4P Rp(PS)1/8-28 9 60 8 6 9 ISO 2P Rp(PS)1/8-28 9 60 8 6 9 ISO 4P Rp(PS)1/4-19 13 75 11 9 12 ISO 2P Rp(PS)1/4-19 13 75 11 9 12 ISO 4P -
