Products
HOME / Products
-
Custom Made Carbide Tap
We accept custom made carbide tap for several types,
- For Extra Longer Working Length
- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available
- For Special Application, such as Inconel, Stainless Steel or Hardened Material
- Interrupt thread or double thread are also available
- Welden, HSS tap for large size
- We provide you fully technical support and total solution on threading working pieces.
-

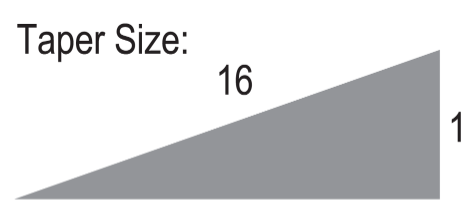

Fine More (PT) Pipe Taper Thread......

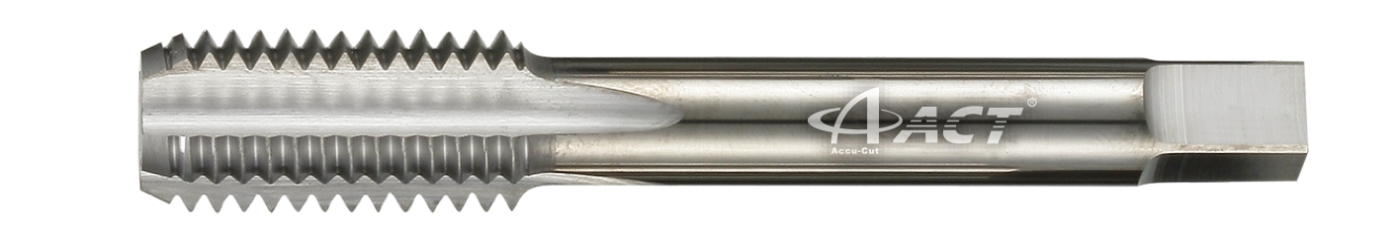

（SFS）Straight Flute Solid Carbide Tap-Pipe Taper Thread(JIS Shank)-NPT
（SFS）Straight Flute Solid Carbide Tap-Pipe Taper Thread(JIS Shank)-NPTF
（SFS）Straight Flute Solid Carbide Tap-Pipe Taper Thread(JIS Shank)-PTF
Application: Plastic , Fiber, Cast Iron, Bakelite, No lead Bronze, Zine, Aluminum Alloy (6061-T6, ADC), Aluminum(AC), Bakelite, No lead Bronze, Brass, Soft Steel, Iron, Titanium Alloy, Tool Steel, Stainless SteelPipe Taper Thread Specification Square Shank

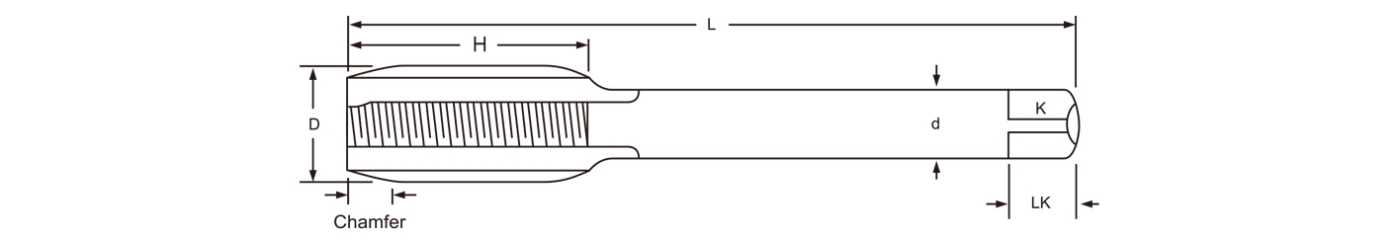

ClassChamfer Length Flute Length Overall Length Shank Diameter Width Length Rc(PT)1/16-28 16 60 8 6 9 ISO Ⅲ=2P Rc(PT)1/8-28 16 60 8 6 9 ISO Ⅲ=2P Rc(PT)1/4-19 23 75 11 9 12 ISO Ⅲ=2P Rc(PT)3/8-19 23 75 14 11 14 ISO Ⅲ=2P -
