（SFS）Straight Flute Solid Carbide Tap-Pipe Parallel Thread(JIS Shank)-Rp（PS）

商品編號：SFS-Rp(PS)

Detail Item/Price

Custom Made Carbide Tap

We accept custom made carbide tap for several types,

- For Extra Longer Working Length

- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available

- For Special Application, such as Inconel, Stainless Steel or Hardened Material

- Interrupt thread or double thread are also available

- Welden, HSS tap for large size

- We provide you fully technical support and total solution on threading working pieces.

Fine More (PF) Pipe Parallel Thread......



   （SFS）Straight Flute Solid Carbide Tap-Pipe Parallel Thread(JIS Shank)-G(PF)

（SFS）Straight Flute Solid Carbide Tap-Pipe Parallel Thread(JIS Shank)-NPSM

Roll Form Flute(PF)   Straight Flute Mill(PF) Spiral Flute(PF)

Fine More (PF) Pipe Parallel Thread......
（SFS）Straight Flute Solid Carbide Tap-Pipe Parallel Thread(JIS Shank)-G (PF)
（SFS）Straight Flute Solid Carbide Tap-Pipe Parallel Thread(JIS Shank)-NPSM

Application: Plastic , Fiber, Cast Iron, Bakelite, No lead Bronze, Zine, Aluminum Alloy (6061-T6, ADC), Aluminum(AC), Bakelite, No lead Bronze, Brass, Soft Steel, Iron, Titanium Alloy, Tool Steel, Stainless Steel

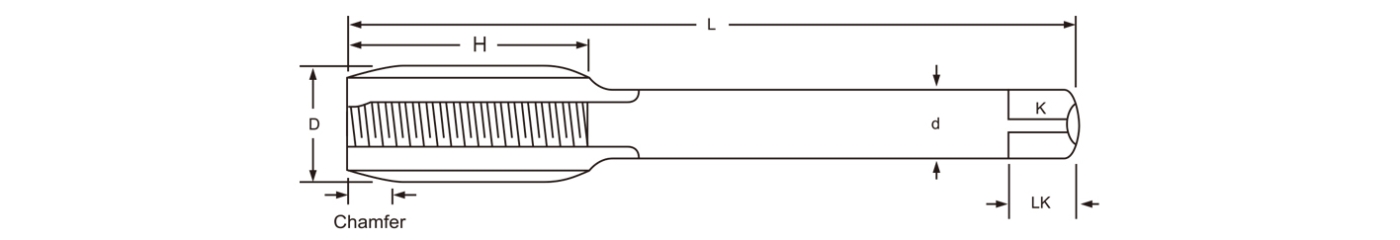

Pipe Parallel Thread	Specification			Square Shank		Class	Chamfer Length
Pipe Parallel Thread	Flute Length	Overall Length	Shank Diameter	Width	Length	Class	Chamfer Length
Rp(PS)1/16-28	16	60	8	6	9	ISO	Ⅲ=2P
Rp(PS)1/16-28	16	60	8	6	9	ISO	Ⅱ=5P
Rp(PS)1/8-28	16	60	8	6	9	ISO	Ⅲ=2P
Rp(PS)1/8-28	16	60	8	6	9	ISO	Ⅱ=5P
Rp(PS)1/4-19	23	75	11	9	12	ISO	Ⅲ=2P
Rp(PS)1/4-19	23	75	11	9	12	ISO	Ⅱ=5P
Rp(PS)3/8-19	23	75	14	11	14	ISO	Ⅲ=2P
Rp(PS)3/8-19	23	75	14	11	14	ISO	Ⅱ=5P
