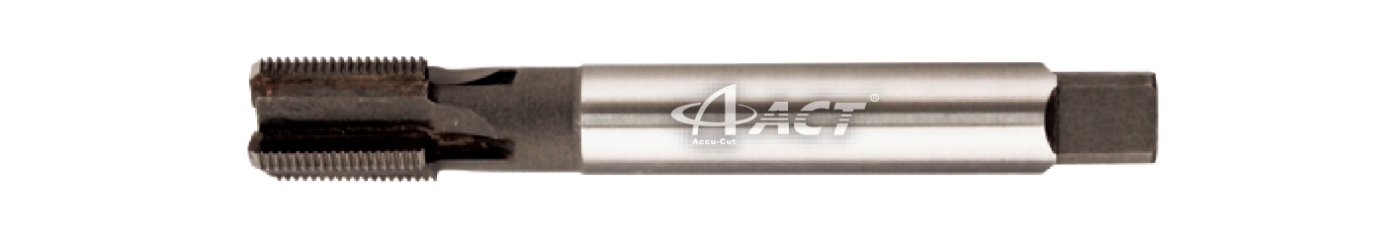

（SFW）Welded Carbide Tap- Pipe Parallel Thread (JIS Shank)-NPSM

商品編號：SFW-NPSM

Detail Item/Price

Custom Made Carbide Tap

We accept custom made carbide tap for several types,

- For Extra Longer Working Length

- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available

- For Special Application, such as Inconel, Stainless Steel or Hardened Material

- Interrupt thread or double thread are also available

- Welden, HSS tap for large size

- We provide you fully technical support and total solution on threading working pieces.

Fine More (PF) Welded Carbide Tap Pipe Parallel Thread......

（SFW）Welded Carbide Tap- Pipe Parallel Thread (JIS Shank)-G (PF)

（SFW）Welded Carbide Tap- Pipe Parallel Thread (JIS Shank)-Rp(PS)

     Spiral Flute(PF)

Fine More (PF) Welded Carbide Tap Pipe Parallel Thread......
(SFW）Welded Carbide Tap- Pipe Parallel Thread (JIS Shank)-G (PF)
(SFW）Welded Carbide Tap- Pipe Parallel Thread (JIS Shank)-R p(PS)

Application: Plastic , Fiber, Cast Iron, Bakelite, No lead Bronze, Zine, Aluminum Alloy (6061-T6, ADC), Aluminum(AC), Bakelite, No lead Bronze, Brass, Soft Steel, Iron, Titanium Alloy, Tool Steel, Stainless Steel

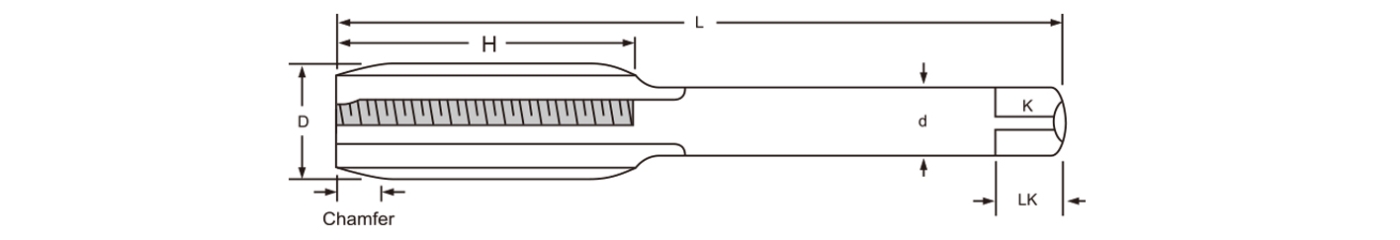

Pipe Parallel Thread	Specification			Square Shank		Class	Chamfer Length
Pipe Parallel Thread	Flute Length	Overall Length	Shank Diameter	Width	Length	Class	Chamfer Length
NPSM1/4-18	18	85	11	9	12	ANSI	2P
NPSM3/8-18	18	100	14	11	14	ANSI	2P
NPSM1/2-14	22	100	18	14	17	ANSI	2P
NPSM3/4-14	22	100	23	17	20	ANSI	2P
NPSM1-11.5	28	110	26	21	24	ANSI	2P
NPSM1 1/4-11.5	28	120	32	26	26	ANSI	2P
NPSM1 1/2-11.5	28	120	32	26	26	ANSI	2P
NPSM2-11.5	28	120	32	26	26	ANSI	2P
