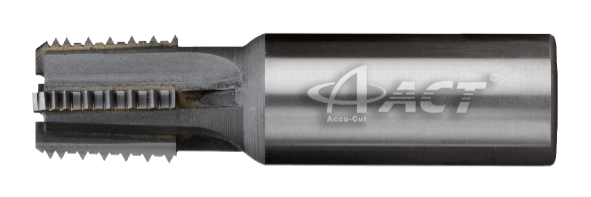

(SFW)Welded Carbide Tap- Pipe Taper Thread (JIS Shank)-Rc(PT)

商品編號:SFW-Rc(PT)
  •



    Custom Made Carbide Tap

    We accept custom made carbide tap for several types,

    - For Extra Longer Working Length

    - Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available

    - For Special Application, such as Inconel, Stainless Steel or Hardened Material

    - Interrupt thread or double thread are also available

    - Welden, HSS tap for large size

                                                        - We provide you fully technical support and total solution on threading working pieces.

           Fine More (PT) Welded Carbide Tap Pipe Taper Thread......


     (SFW)Welded Carbide Tap- Pipe Taper Thread (JIS Shank)-NPT

     (SFW)Welded Carbide Tap- Pipe Taper Thread (JIS Shank)-NPTF

    (SFW)Welded Carbide Tap- Pipe Taper Thread (JIS Shank)-PTF

                                                                                                                                                                                                                                                                                                                                                 Spiral Flute(PT)







  • Fine More (PT) Welded Carbide Tap Pipe Taper Thread......
    (SFW)Welded Carbide Tap- Pipe Taper Thread (JIS Shank)-NPT
    (SFW)Welded Carbide Tap- Pipe Taper Thread (JIS Shank)-NPTF
    (SFW)Welded Carbide Tap- Pipe Taper Thread (JIS Shank)-PTF

    Application:  Plastic , Fiber, Cast Iron, Bakelite, No lead Bronze, Zine, Aluminum Alloy (6061-T6, ADC), Bakelite, No lead Bronze, Brass, Soft Steel, Iron, Titanium Alloy, Tool Steel, Stainless Steel
    Pipe Taper Thread Specification Square Shank Class Chamfer Length
    Flute Length Overall Length  Shank Diameter Width Length
    Rc(PT)1/4-19 18 85 11 9 12 ISO 2P
    Rc(PT)3/8-19 18 100 14 11 14 ISO 2P
    Rc(PT)1/2-14 22 100 17 14 17 ISO 2P
    Rc(PT)3/4-14 22 100 23 17 20 ISO 2P
    Rc(PT)1-11 28 110 26 21 24 ISO 2P
    Rc(PT)1 1/4-11 28 120 32 26 26 ISO 2P
    Rc(PT)1 1/2-11 28 120 32 26 26 ISO 2P
    Rc(PT)2-11 28 120 32 26 26 ISO 2P
