Custom Made Carbide Tap
We accept custom made carbide tap for several types,
- For Extra Longer Working Length
- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available
- For Special Application, such as Inconel, Stainless Steel or Hardened Material
- Interrupt thread or double thread are also available
- Welden, HSS tap for large size
- We provide you fully technical support and total solution on threading working pieces.
-
Fine More (UN) HSS-Co Unified Thread......
(SFW）Welded Carbide Tap- Straight Flutes-Unified Thread (JIS Shank)-UN
(SFW）Welded Carbide Tap- Straight Flutes-Unified Fine Thread (JIS Shank)-UNS
(SFW）Welded Carbide Tap- Straight Flutes-Unified Extreme Fine Thread (JIS Shank)-UNF
Application: Plastic , Fiber, Cast Iron, Bakelite, No lead Bronze, Zine, Aluminum Alloy (6061-T6, ADC), Aluminum(AC), Bakelite, No lead Bronze, Brass, Soft Steel, Iron, Titanium Alloy, Tool Steel, Stainless Steel

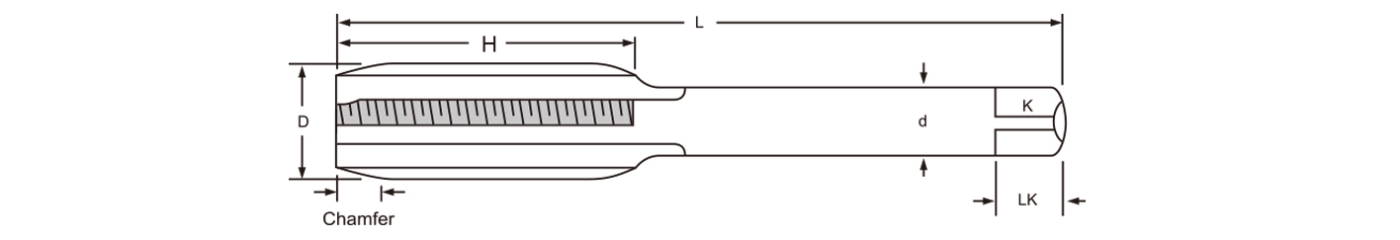

Unified Extreme Fine Thread Specification Square Shank Class Chamfer Length Flute Length Overall Length Shank Diameter Width Length 1/2-28UNEF 18/35 85 10.5 8 11 2B 2P 9/16-24UNEF 18/35 85 10.5 8 11 2B 2P 5/8-24UNEF 18/35 100 12.5 10 13 2B 2P 11/16UNEF 18/35 100 14 11 14 2B 2P 3/4-20UNEF 18/35 100 14 11 14 2B 2P 13/16-20UNEF 18/35 100 15 12 15 2B 2P 7/8-20UNEF 18/35 100 17 13 16 2B 2P 15/16-20UNEF 18/35 110 19 15 18 2B 2P 1-20UNEF 18/35 110 20 15 18 2B 2P 1 1/16-18UNEF 22/40 110 20 15 18 2B 2P 1 1/8-18UNEF 22/40 110 22 17 20 2B 2P 1 3/16-18UNEF 22/40 110 23 17 20 2B 2P 1 1/4-18UNEF 22/40 110 24 19 22 2B 2P 1 5/16-18UNEF 22/40 110 25 19 22 2B 2P 1 3/8-18UNEF 22/40 110 26 21 24 2B 2P 1 7/16-18UNEF 22/40 110 28 21 24 2B 2P 1 1/2-18UNEF 22/40 110 30 23 26 2B 2P -
