Custom Made Carbide Tap
We accept custom made carbide tap for several types,
- For Extra Longer Working Length
- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available
- For Special Application, such as Inconel, Stainless Steel or Hardened Material
- Interrupt thread or double thread are also available
- Welden, HSS tap for large size
- We provide you fully technical support and total solution on threading working pieces.
Fine More HSS-Co Tap (PF) Pipe Parallel Thread......
（SPH）HSS-Co Spiral Flutes Tap- Pipe Parallel Thread (JIS Shank)-G(PF)
-
Fine More HSS-Co Tap (PF) Pipe Parallel Thread......
（SPH）HSS-Co Spiral Flutes Tap- Pipe Parallel Thread (JIS Shank)-G(PF)

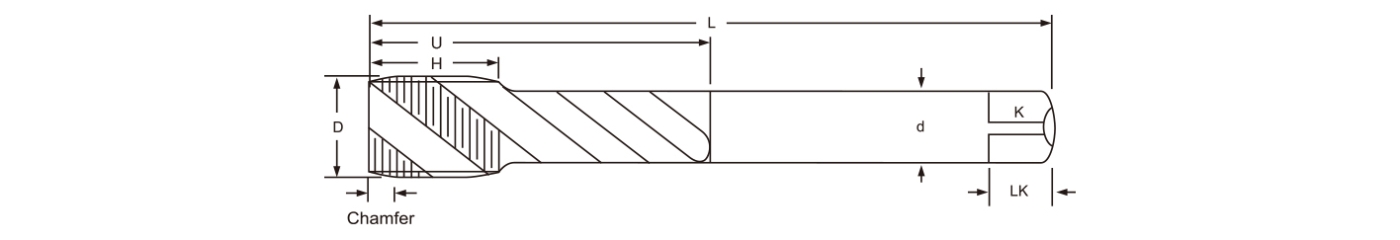

Pipe Parallel Thread Specification Square Shank Chamfer Length Flute Length Overall Length Shank Diameter Width Length NPSM1/16-27 10P 60 8 6 9 2P NPSM1/8-27 10P 60 8 6 9 2P NPSM1/4-18 10P 75 11 9 12 2P NPSM3/8-18 10P 75 14 11 14 2P NPSM1/2-14 10P 80 18 14 17 2P NPSM3/4-14 10P 85 23 17 20 2P NPSM1“-11 1/2 10P 95 26 21 24 2P -
