Custom Made Carbide Tap
We accept custom made carbide tap for several types,
- For Extra Longer Working Length
- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available
- For Special Application, such as Inconel, Stainless Steel or Hardened Material
- Interrupt thread or double thread are also available
- Welden, HSS tap for large size
- We provide you fully technical support and total solution on threading working pieces.
-
Fine More (PT) Pipe Taper Thread......
（SPS）Solid Carbide Tap-Pipe Taper Thread(JIS Shank)-Rc(PT)
（SPS）Solid Carbide Tap-Pipe Taper Thread(JIS Shank)-NPTF
（SPS）Solid Carbide Tap-Pipe taper Thread(JIS Shank)-PTF

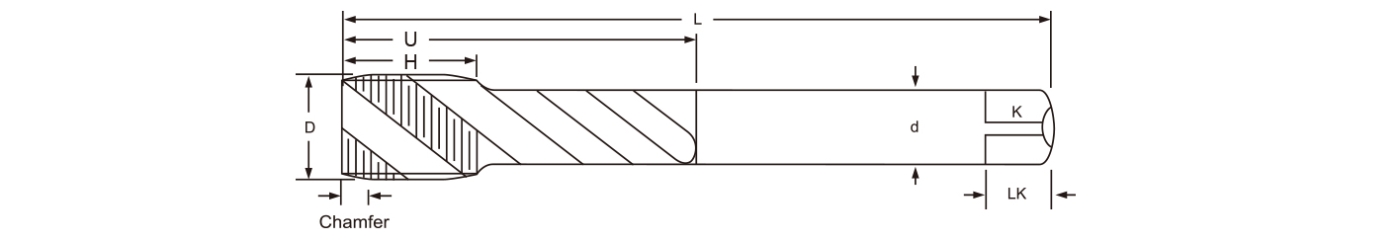

Application: Plastic, Fiber, Cast Iron, Bakelite, No lead Bronze, Zine, Soft Steel, Iron, Titanium Alloy, Tool Steel,Stainless Steel, Aluminum Alloy(6061-T6、ADC),Aluminum(AC)Pipe Taper Thread Specification Square Shank Class Chamfer Length Flute Length Overall Length Shank Diameter Width Length NPT1/16-27 17 60 8 6 9 ANSI 2P NPT1/8-27 17 60 8 6 9 ANSI 2P NPT1/4-18 23 75 11 9 12 ANSI 2P NPT3/8-18 23 75 14 11 14 ANSI 2P -
