Products
HOME / Products
-
Cutting Length= 3 PitchNominal Size Flute N. D. Pitch Diameter Flute Length Overall Length Shank Diameter Drill Size Tool Type M1.4*0.3 3 1.4 0.3 1 4 50 4 1.1 Cutting Length=3 Pitch,

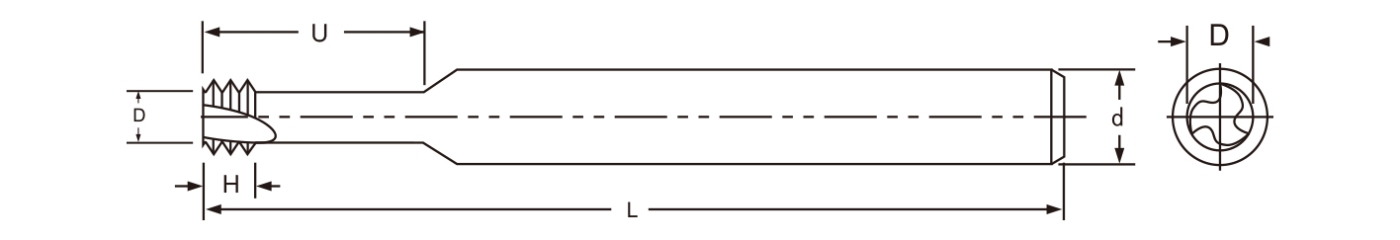

Please see the picture
illustrated above.M1.6*0.35 3 1.6 0.35 1.2 4 50 4 1.25 M2*0.4 3 2 0.4 1.5 5 50 4 1.6 M2.5*0.45 3 2.5 0.45 2.05 6 50 4 2.05 M3*0.5 3 3 0.5 2.3 7 50 4 2.5 M3.5*0.6 3 3.5 0.6 2.7 8 50 4 2.9 M4*0.7 3 4 0.7 3 10 50 4 3.3 M5*0.8 3 5 0.8 4 10 50 4 4.2
Cutting Length= Full PitchNominal Size Flute N. D. Pitch Diameter Flute Length Overall Length Shank Diameter Drill Size Tool Type M6*0.75 3 6 0.75 5 12 60 6 5.25 Cutting Length= Full Pitch
Please see the picture
illustrated above.M6*1.0 3 6 1 4.6 12 60 6 5 M8*1.0 3 8 1 6 16 60 6 7 M8*0.75 3 8 0.75 6 16 60 6 7.25 M8*1.25 3 8 1.25 6 16 60 6 6.75 M8*1.0 3 8 1 6 16 60 6 7 M10*1.5 3 10 1.5 8 20 75 8 8.5 M10*1.25 3 10 1.25 8 20 75 8 8.75 M10*1.0 3 10 1 8 20 75 8 9 M10*0.75 3 10 0.75 8 20 75 8 9.25 M12*1.75 4 12 1.75 8 23 75 8 10.25 M12*1.5 4 12 1.5 8 23 75 8 10.5 M12*.25 4 12 1.25 8 20 75 8 10.75 M12*1.0 4 12 1 8 20 75 8 11 M12*0.75 4 12 0.75 8 20 75 8 11.25 M12*1.75 4 12 1.75 10 23 75 10 10.25 M14*2.0 4 14 2 10 23 75 10 12 M14*1.5 4 14 1.5 10 23 75 10 12.5 M14*1.25 4 14 1.25 10 23 75 10 12.75 M14*1.0 4 14 1 10 23 75 10 13 M16*2.0 4 16 2 12 25 100 12 14 M16*1.5 4 16 1.5 12 25 100 12 14.5 M16*1.25 4 16 1.25 12 25 100 12 14.75 M16*1.0 4 16 1 12 25 100 12 15 M20*3.0 4 20 3 16 30 100 16 17 M20*2.5 4 20 2.5 16 30 100 16 17.5 M20*2.0 4 20 2 16 30 100 16 18 M20*1.5 4 20 1.5 16 30 100 16 18.5 M24*3.0 4 24 3 20 30 100 20 21 M27*3.5 4 27 3.5 20 30 100 20 23.5 -
Custom Made Carbide Tap
We accept custom made carbide tap for several types,
- For Extra Longer Working Length
- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available
- For Special Application, such as Inconel, Stainless Steel or Hardened Material
- Interrupt thread or double thread are also available
- Welden, HSS tap for large size
- We provide you fully technical support and total solution on threading working pieces.
Fine More (ISO) Metric Thread Mill......
-
