(TMT) ISO Carbide Micro Thread Mill - Internal

商品編號：TMT-ISO

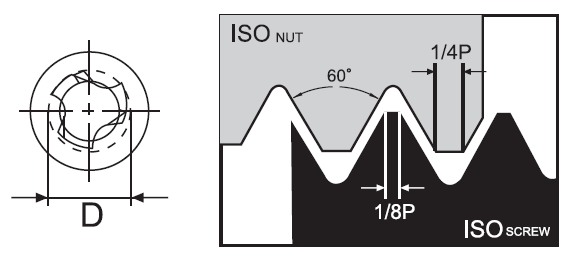

Thread Length: 2D (D = Nominal Thread Size)
微小徑銑牙刀，另有硬材質HRC62°系列可供選擇。

Item/Price

Item No.	Flute (T)	Thread Size	Pitch (P)	Diameter (D)	Flute Length (H)	Overall Length (L)	Shank Diameter (d)
X3TMT0072	3	M1.0x0.25	P0.25	0.72	2.5	50	4
X3TMT0092	3	M1.0x0.25	P0.25	0.92	2.8	50	4
X3TMT0120	3	M1.6x0.35	P0.35	1.20	3.3	50	3
X3TMT0154	3	M2.0x0.40	P0.40	1.54	4.4	50	3
X3TMT0163	3	M2.2x0.45	P0.45	1.63	4.8	50	3
X3TMT0196	3	M2.5x0.45	P0.45	1.96	5.3	50	4
X3TMT0240	3	M3.0x0.50	P0.50	2.40	6.4	50	4
X3TMT0275	3	M3.5x0.60	P0.60	2.75	7.4	50	4
X3TMT0315	3	M4.0x0.70	P0.70	3.15	8.6	60	6
X3TMT0400	3	M5.0x0.80	P0.80	4.00	12	60	6
X3TMT0475	3	M6.0x1.00	P1.00	4.75	13	60	6
X3TMT0595	3	M8.0x1.25	P1.25	5.95	17.3	60	6
X3TMT0650	3	M8.0x1.25	P1.25	6.50	17.3	60	8
X3TMT0790	3	M10.0x1.50	P1.50	7.90	22	60	8
X3TMT0950	3	M12.0x1.75	P1.75	9.50	25.5	75	10
X3TMT0990	3	M14.0x2.00	P2.00	9.90	29.0	75	10
X4TMT119	4	M16.0x2.00	P2.00	11.90	33.0	75	12
X4TMT159	4	M20x2.50	P2.50	15.90	42.0	100	16
