Fine More (PT) Pipe Thread Mill......

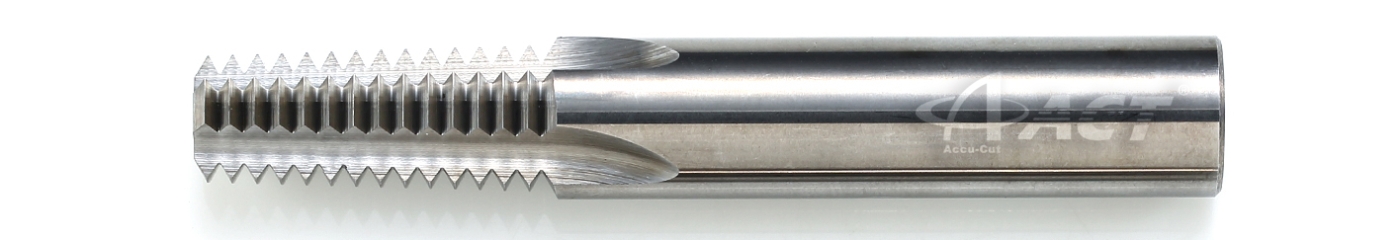

（TMTF）Solid Carbide Pipe Thread Mill -Straight Flute-PT
Cutting Length= Full PitchPipe Parallel Thread Flute N. D. Diameter Flute Length Overall Length Shank Diameter Drill Size Tool Type NPT1/16-27 7.894 6 16 60 6 6.95 Cutting Length= Full Pitch
Please see the picture
illustrated above.NPT1/8-27 10.242 8 20 75 8 9.30 NPT1/4-18 13.616 10 23 75 10 12.20 NPT3/8-18 17.055 12 25 75 12 15.64 NPT1/2-14 21.224 12 25 75 12 19.41 NPT3/4-14 25.569 16 30 100 16 24.75 NPT1-11.5 33.228 16 30 100 16 31.02 NPT1-11.5 33.228 20 30 100 20 31.02 -
Custom Made Carbide Tap
We accept custom made carbide tap for several types,
- For Extra Longer Working Length
- Special Thread such as MJ, UNJ, ACME, STUB ACME thread for both internal or external are available
- For Special Application, such as Inconel, Stainless Steel or Hardened Material
- Interrupt thread or double thread are also available
- Welden, HSS tap for large size
- We provide you fully technical support and total solution on threading working pieces.
-
