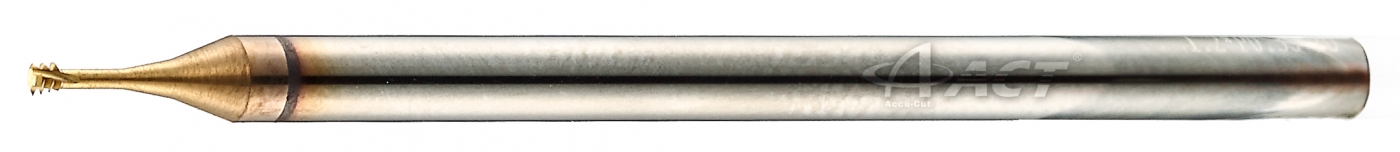

(TMTL) ISO Carbide Micro Thread Mill - Internal

商品編號：TMTL-ISO

Thread Length: 3D (D = Nominal Thread Size)

Item/Price

Item No.	Flute (T)	Thread Size	Pitch (P)	Diameter (D)	Flute Length (H)	Overall Length (L)	Shank Diameter (d)
X3TMTL0106	3	M1.4x0.30	P0.30	1.06	3.9	50	3
X3TMTL0120	3	M1.6x0.35	P0.35	1.20	5.1	50	3
X3TMTL0154	3	M2.0x0.40	P0.40	1.54	6.1	50	3
X3TMTL0196	3	M2.5x0.45	P0.45	1.96	7.6	50	4
X3TMTL0240	3	M3.0x0.50	P0.50	2.40	9.3	50	4
X3TMTL0315	3	M4.0x0.70	P0.70	3.15	12.4	60	6
X3TMTL0400	3	M5.0x0.80	P0.80	4.00	15.6	60	6
X3TMTL0475	3	M6.0x1.00	P1.00	4.75	19.0	60	6
X3TMTL0595	3	M8.0x1.25	P1.25	5.95	24.3	60	6
X3TMTL0650	3	M8.0x1.25	P1.25	6.50	24.3	60	8
X3TMTL0790	3	M10x1.50	P1.50	7.90	31.0	60	8
X3TMTL0950	3	M12x1.750	P1.75	9.50	36.5	80	10
