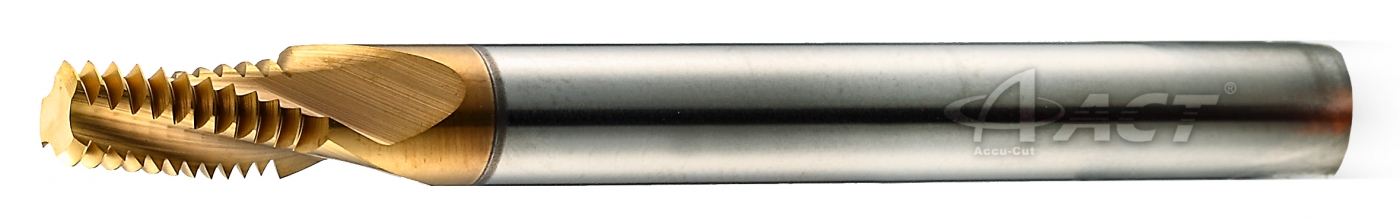

(TPT) UN Carbide Thread Mill - Helical Flutes - NPTF - Internal / External

商品編號：TPT-NPTF

NTPF

Item/Price

Item No.	Flute (T)	Thread Size	Pitch (P)	Diameter (D)	Effective Length (H)	Overall Length (L)	Shank Diameter (d)	Teeth (Zt)	Bottom Hole Size (mm)
X3TPTF27060	3	1/16"x27	P27.0	4.74	9.4	60	6	10	6.3
X4TPTF27080	4	1/8"x27	P27.0	6.94	9.4	60	8	10	8.4
X4TPTF18100	4	1/4"x18	P18.0	8.56	14.1	75	10	10	11.1
X4TPTF18120	4	3/8"x18	P18.0	11.05	14.1	75	12	10	14.7
X4TPTF14120	4	1/2"x14	P14.0	10.65	20.8	75	12	12	17.9
X4TPTF14160	4	1/2"x14 3/4"x14	P14.0	13.98	25.4	100	16	14	17.9 23.4
X4TPTF11520	4	1"x11.5 2"x11.5	P11.5	17.99	33.1	100	20	15	29.4 56.2
X4TPTF08200	4	2 1/2"x8 3"x8	P8.0	17.60	38.1	100	20	12	67.0
