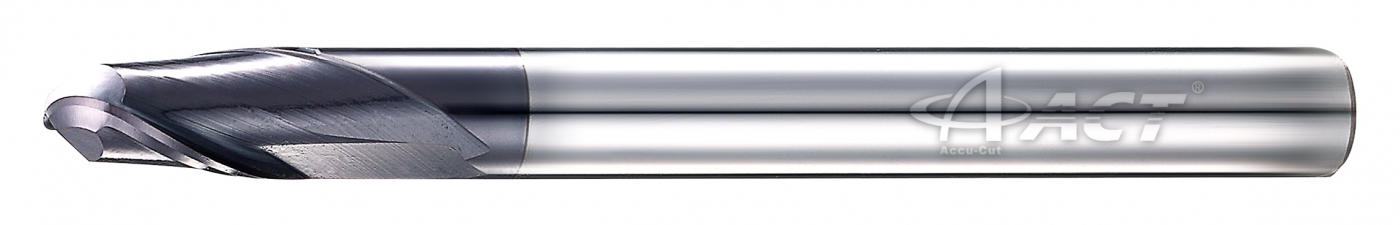

(S2KBL) 2刃高硬度長柄球刀

ACT鎢鋼球型立銑刀,專為HRC50-60度工件加工設計,選用德國超微粒抗磨耗鎢鋼棒材及高含矽鍍層,高硬度加工最佳選擇
  •
    產品編號
    Item No.
    刃數 (T)
    Flute
    刃徑 (D)
    Diameter
    R角 (R)
    Radius
    刃長 (H)
    Flute Length
    全長 (L)
    Overall Length
    柄徑 (d)
    Shank Diameter
    S2KBL-R005-L060d6 2 1 0.5 2 60 6
    S2KBL-R005-L075d6 2 1 0.5 2 75 6
    S2KBL-R010-L060d6 2 2 1 4 60 6
    S2KBL-R010-L075d6 2 2 1 4 75 6
    S2KBL-R010-L100d6 2 2 1 4 100 6
    S2KBL-R015-L060d6 2 3 1.5 6 60 6
    S2KBL-R015-L075d6 2 3 1.5 6 75 6
    S2KBL-R015-L100d6 2 3 1.5 6 100 6
    S2KBL-R020-L060 2 4 2 8 60 4
    S2KBL-R020-L060d6 2 4 2 8 60 6
    S2KBL-R020-L075 2 4 2 8 75 4
    S2KBL-R020-L075d6 2 4 2 8 75 6

    產品編號
    Item No.
    刃數 (T)
    Flute
    刃徑 (D)
    Diameter
    R角 (R)
    Radius
    刃長 (H)
    Flute Length
    全長 (L)
    Overall Length
    柄徑 (d)
    Shank Diameter
    S2KBL-R020-L100 2 4 2 8 100 4
    S2KBL-R020-L100d6 2 4 2 8 100 6
    S2KBL-R025-L075 2 5 2.5 10 75 6
    S2KBL-R030-L075 2 6 3 12 75 6
    S2KBL-R030-L100 2 6 3 12 100 6
    S2KBL-R030-L150 2 6 3 12 150 6
    S2KBL-R040-L075 2 8 4 16 75 8
    S2KBL-R040-L100 2 8 4 16 100 8
    S2KBL-R040-L150 2 8 4 16 150 8
    S2KBL-R050-L100 2 10 5 20 100 10
    S2KBL-R050-L150 2 10 5 20 150 10
    S2KBL-R060-L100 2 12 6 24 100 12
    S2KBL-R060-L150 2 12 6 24 150 12
